Pin Pusher - Nose Bridge repair tool [PP]
Our Selling Price: US$65.00
Weight: 2
Item Description

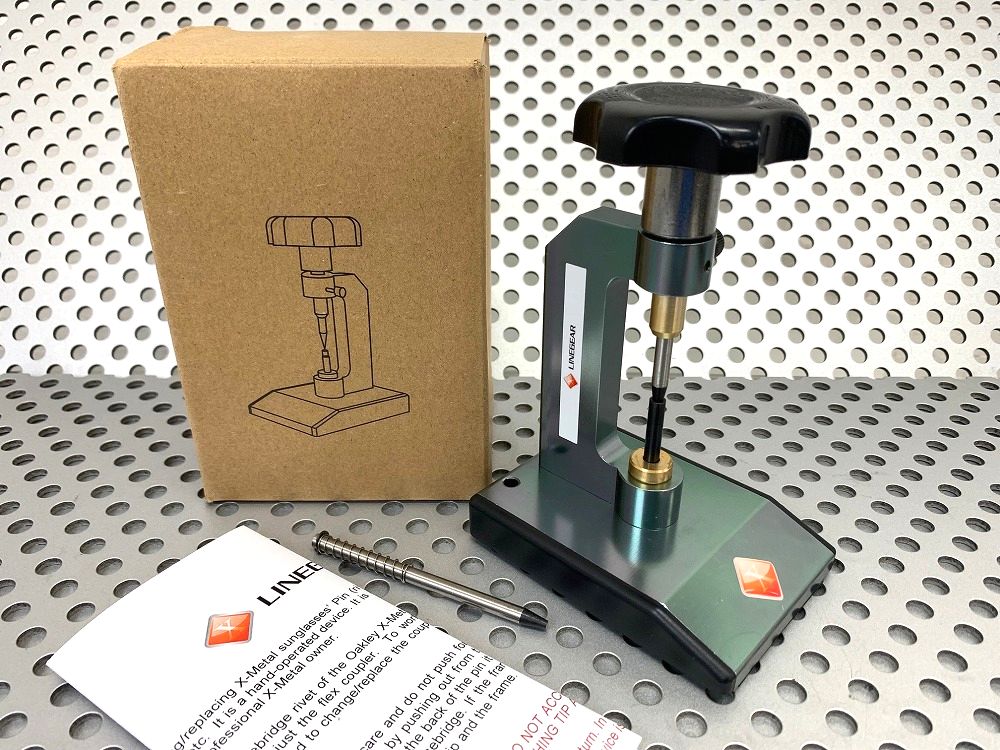

Pin Pusher - Nose bridge tuning tool
This device is used for removing or replacing the Pin (rivet) and Flex Coupler on X-Metal sunglasses. It is a hand-operated device that is compact and serves as a stepping stone from an amateur to a professional X-Metal owner.

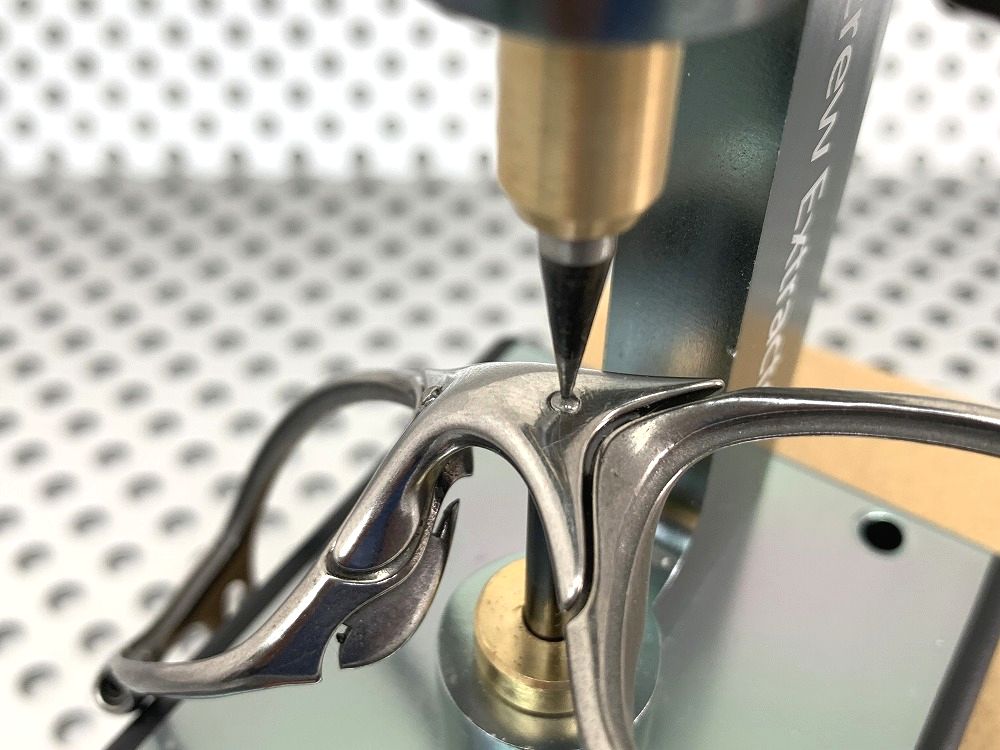

You will be able to push out the nosebridge rivet of Oakley X-Metal frames, allowing you to change or replace the rivet itself and/or the flex coupler. To work easily, please remove the sunglass ear stem (arms) before proceeding to change or replace the coupler/pin, as it provides space for easier handling.

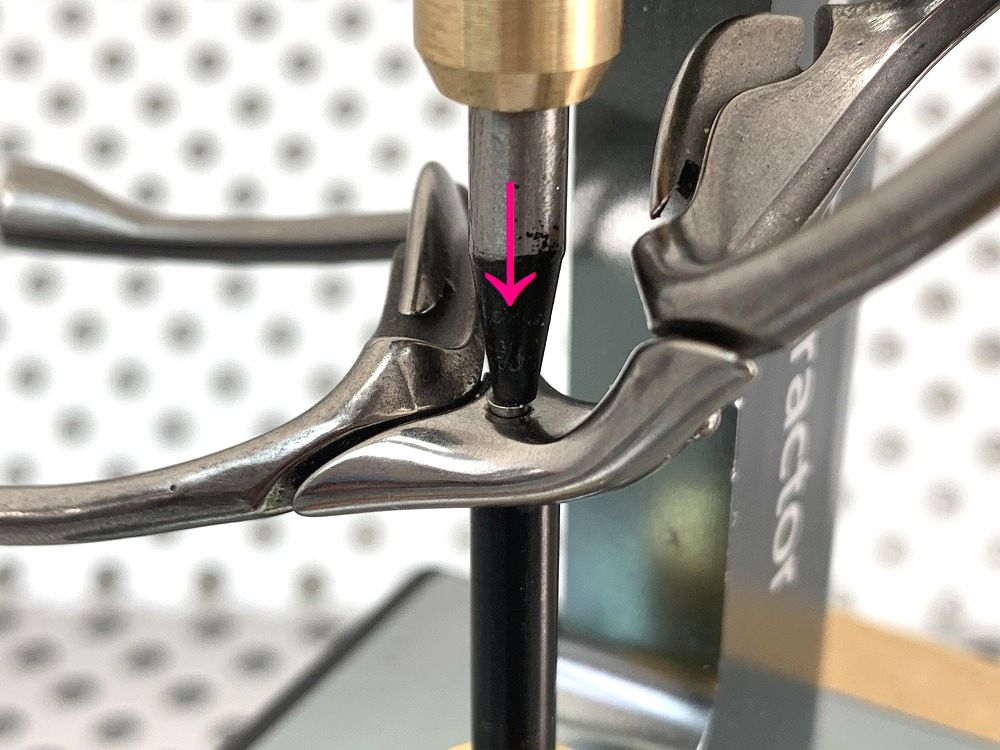

When installing the pin, proceed slowly with care and avoid pushing forcefully to prevent breaking the pushing tip. While it is straightforward to remove the pin by pushing from the front, installing the pin by pushing from the back can be a bit challenging.
Ensure that the orbital is correctly aligned with the nose bridge. If the frame and nose bridge pin are not properly aligned, the pushing tip may create excessive stress on both the tip and the frame, potentially causing damage.

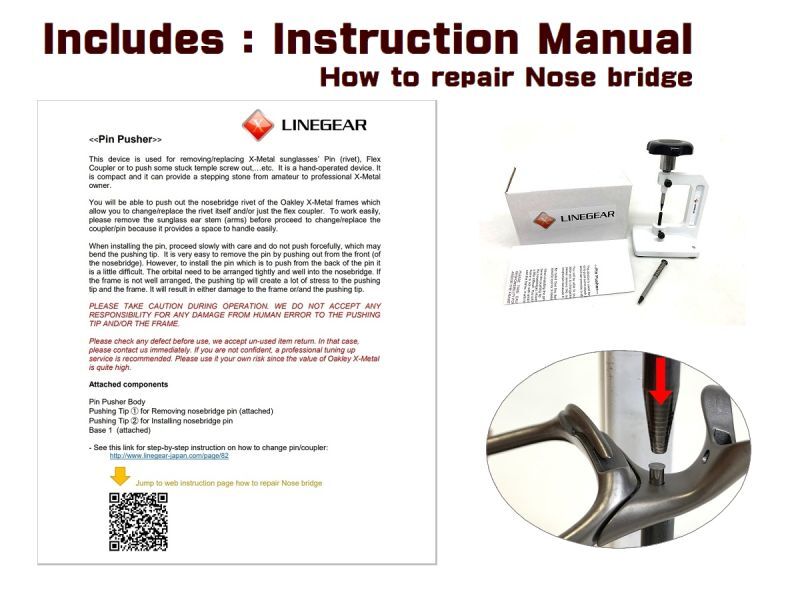

Refer to the "How to Replace" section for step-by-step instructions on repairing the nosebridge.
Youtube video ”How to repair Nose bridge" Please watch for your reference.
This is a video demonstrating the operation of the Pin Pusher.

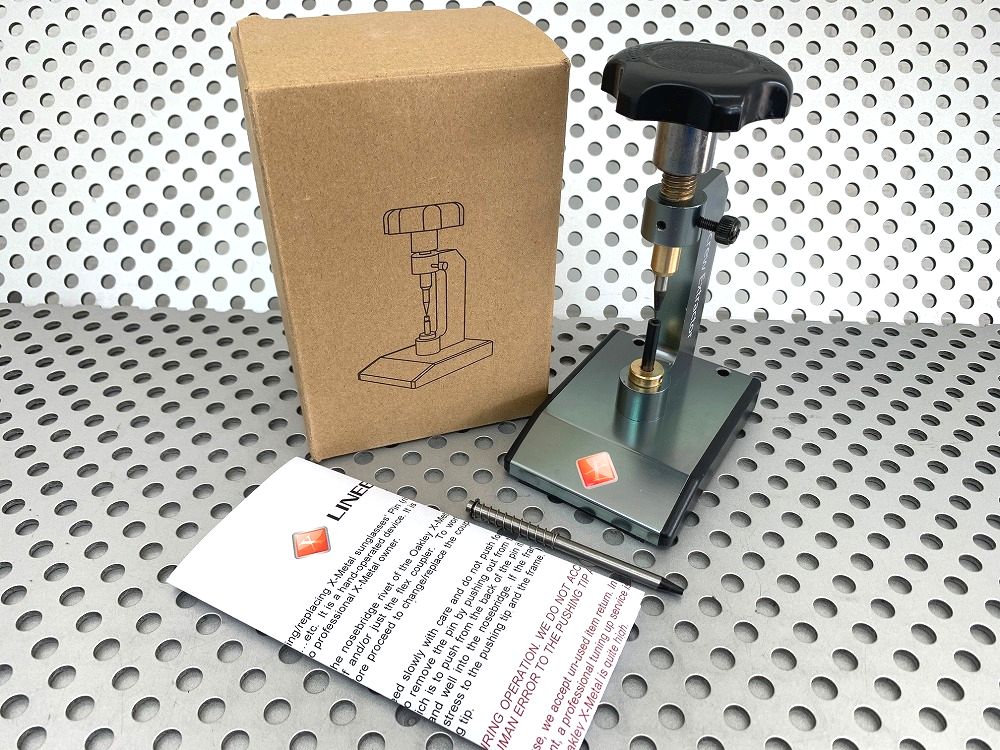

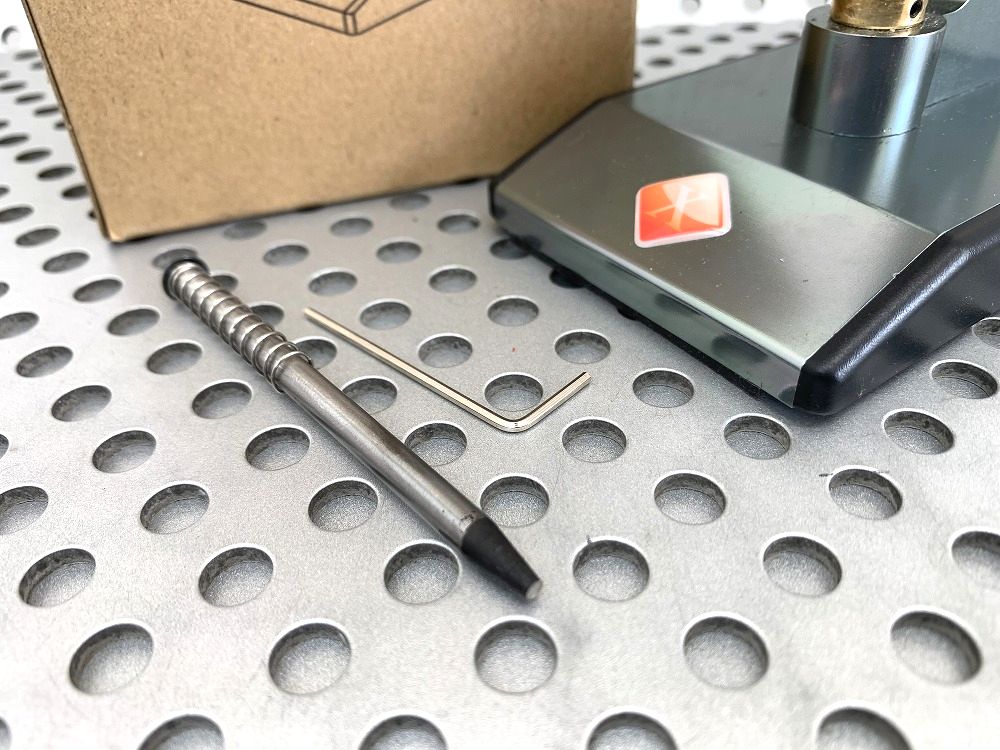

Attached Components:
- Pin Pusher Body

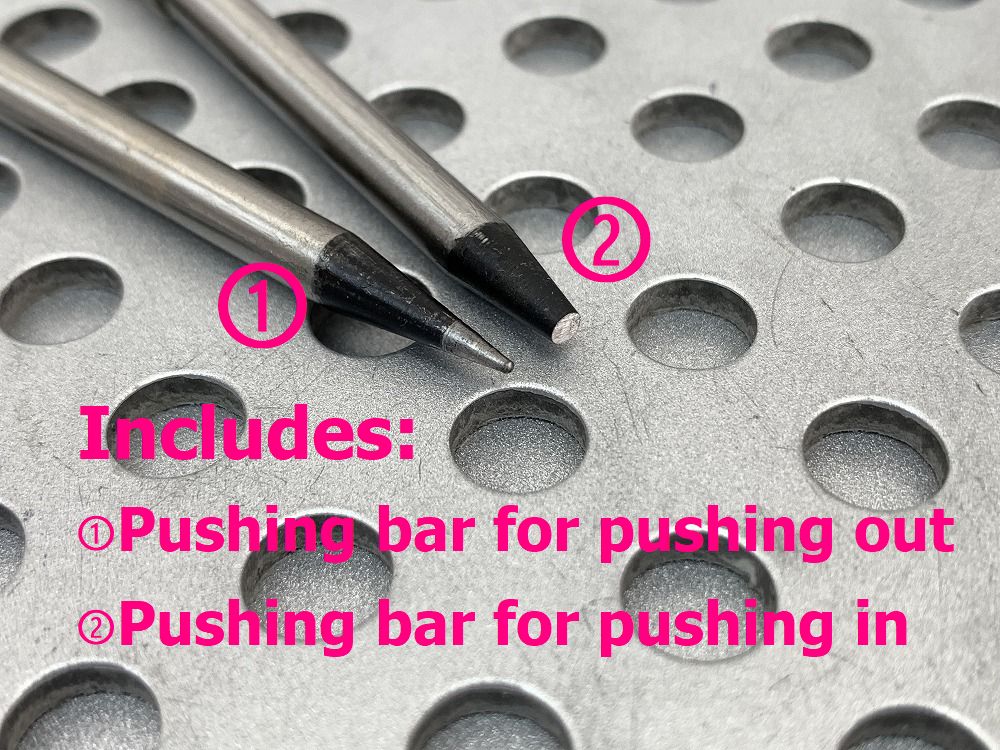

- Pushing Tip (1) for Removing Pin
- Pushing Tip (2) for Installing Pin

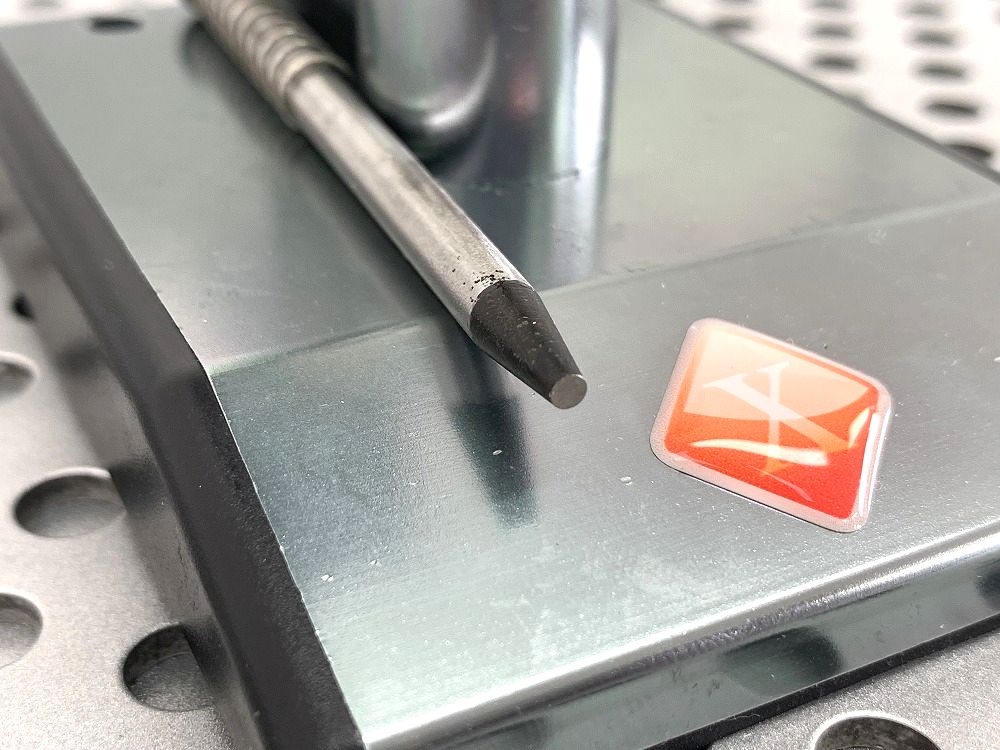

Pushing Tip for Pushing in.
Compatibility : Can use for the following Models.
- JULIET
- X-METAL XX
- PENNY
- MARS
- ROMEO2

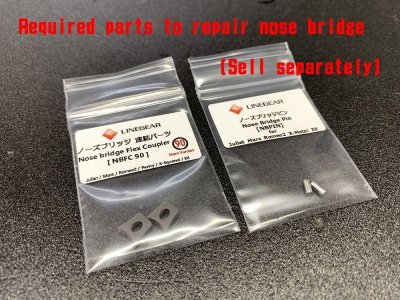

This listing does NOT include the Nose Bridge Flex Coupler and Nose Bridge Pin. (Sold separately)
PLEASE EXERCISE CAUTION DURING OPERATION. WE DO NOT ACCEPT ANY RESPONSIBILITY FOR DAMAGE CAUSED BY HUMAN ERROR TO THE PUSHING TIP AND/OR THE FRAME.
Please check for any defects before use; we accept returns for unused items. In such cases, please contact us immediately. In most cases, no restocking fee is applied for returned items. If you are not confident, we recommend seeking professional tuning-up services. Please use it at your own risk as the value of Oakley X-Metal is quite high.
Due to its weight, it is available for Express Shipping only (Shipping cost varies by area).
